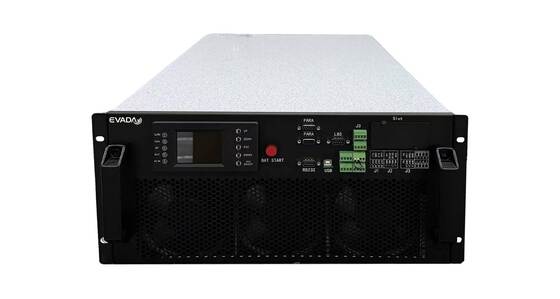

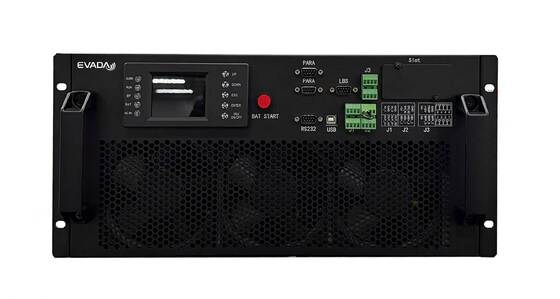

60KVA Series Rack Type 3 Phase In/3 Phase Out UPS
Detalhes do produto
| Tipo | fonte de alimentação ininterrupta | Tensão de entrada | 380/400/415 VCA |
|---|---|---|---|
| Tensão de saída | 380/400/415 VCA | Configuração de fase | 3 fases de entrada/3 fases de saída |
| Número de baterias | 30-44 (12Vcc) | Fator de potência | 0,9 |
| Tensão da bateria | 360 ~ 480 (configuração padrão de fábrica 432) | Dimensões (L x P x A) | 445*750*218mm |
Descrição de produto
60kVA Rack-Mounted 3 phase in/3 phase out Online UPS
1. Product Overview
The 60kVA Rack-Mounted Online UPS is a high-performance uninterruptible power supply designed for mission-critical applications. Featuring advanced dual DSP + CPLD digital control technology and IGBT rectification, it delivers stable, clean, and continuous power to sensitive equipment.
With a three-phase input and three-phase output (3/3 configuration), this UPS ensures high efficiency, excellent power quality, and superior adaptability to complex grid environments.
Its compact rack-mounted design saves valuable installation space, while intelligent monitoring and flexible configuration make it an ideal power protection solution for modern infrastructures.
2. Specification
|
Item |
Specification |
|---|---|
| Capacity | 60kVA |
| Input | 3-phase (3P+N+PE) |
| Input Voltage | 380/400/415Vac |
| Input Range | 305 ~ 477Vac |
| Input PF | ≥ 0.99 |
| Output Voltage | 380Vac |
| Output Accuracy | ±1% |
| Output PF | 0.9 |
| Transfer Time | 0 ms |
| Efficiency | 95% / 99% (ECO) |
| Battery Voltage | ±216VDC |
| Battery Qty | 30–44 |
| Noise | ≤ 65dB |
| Communication | RS232 / RS485 / Dry Contact / SNMP |
3. Key Features
- Three-phase input and output
- True online double-conversion technology
- Zero transfer time
- High efficiency operation
- Wide input adaptability
- Flexible battery configuration
- Parallel expansion support
- Intelligent monitoring
4. Applications
Widely used in environments requiring high reliability:
- Data centers and server rooms
- Telecommunications systems
- Banking and financial institutions
- Medical equipment
- Industrial automation
- Transportation systems
- Government facilities
- Energy industry
5. Key Advantages
1) High Efficiency
Up to 95% efficiency in online mode and 99% in ECO mode.
Input power factor ≥ 0.99, reducing energy loss.
2) Wide Input Range
Supports 305 ~ 477Vac and 40Hz ~ 70Hz.
Ensures stable operation under unstable grid conditions.
3) Stable Output
±1% voltage accuracy with low distortion.
0ms transfer time ensures uninterrupted power.
4) Battery Management
Supports 30–44 batteries with intelligent charging.
Extends battery life and improves reliability.
5) Parallel Capability
Supports parallel operation for higher capacity and redundancy.
6) Monitoring & Communicatio
RS232, RS485, dry contact and optional SNMP supported.
