Home Energy Storage System LW-10K Wall-Mounted LiFePO₄ Battery

  • Home Energy Storage System LW-10K Wall-Mounted LiFePO₄ Battery
  • Home Energy Storage System LW-10K Wall-Mounted LiFePO₄ Battery
Lugar de origem CHINA
Marca Gtech
Certificação UN38.3/CE/MSDS
Número do modelo LW-10K
Quantidade de ordem mínima 1 pcs
Preço negotiable
Detalhes da embalagem Embalagem de caixa de madeira
Tempo de entrega 20 dias de trabalho
Termos de pagamento T/T.
Habilidade da fonte 10000 PCs/mês

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WECHAT: 0086 18588475571

skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Vida de serviço 10 anos Cor da bateria Branco
Proteção de entrada IP65 Umidade de armazenamento RH de 65±20%
Tipo da manutenção livre Faixa de temperatura operacional -20 ° C a 60 ° C.
Tipo de célula da bateria LifePo4 Garantia 5 anos
Destacar

wall-mounted LiFePO4 battery

,

home energy storage system

,

10KWh LiFePO4 battery pack
Deixe um recado
Descrição de produto

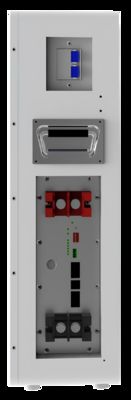

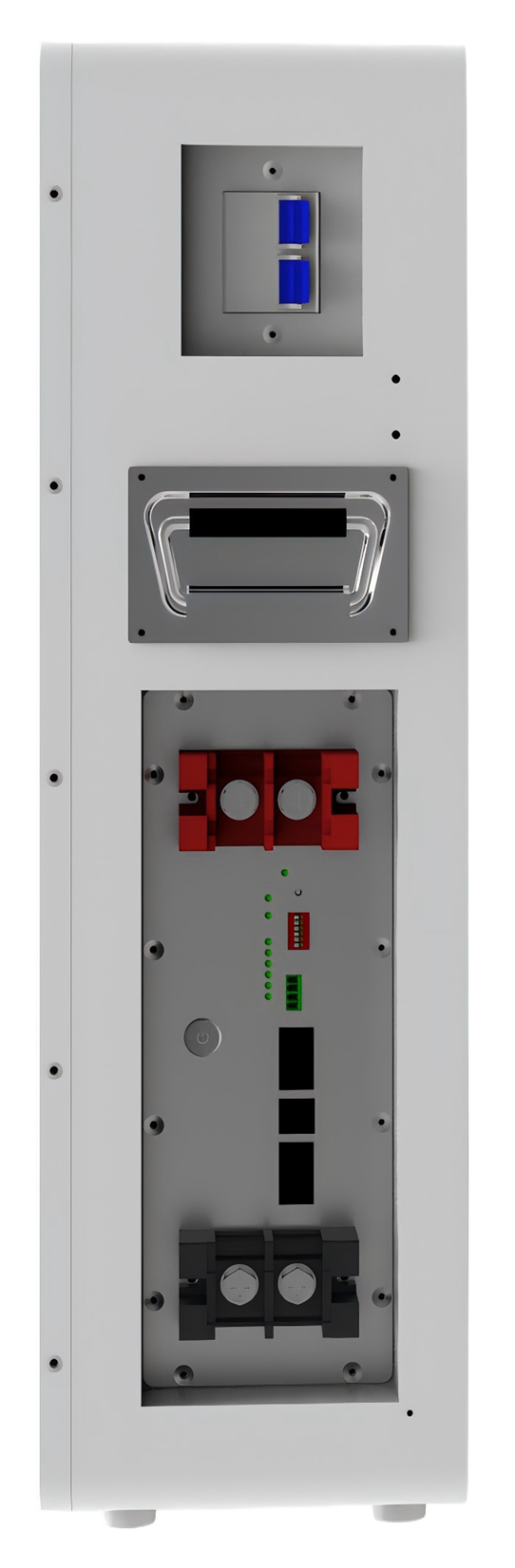

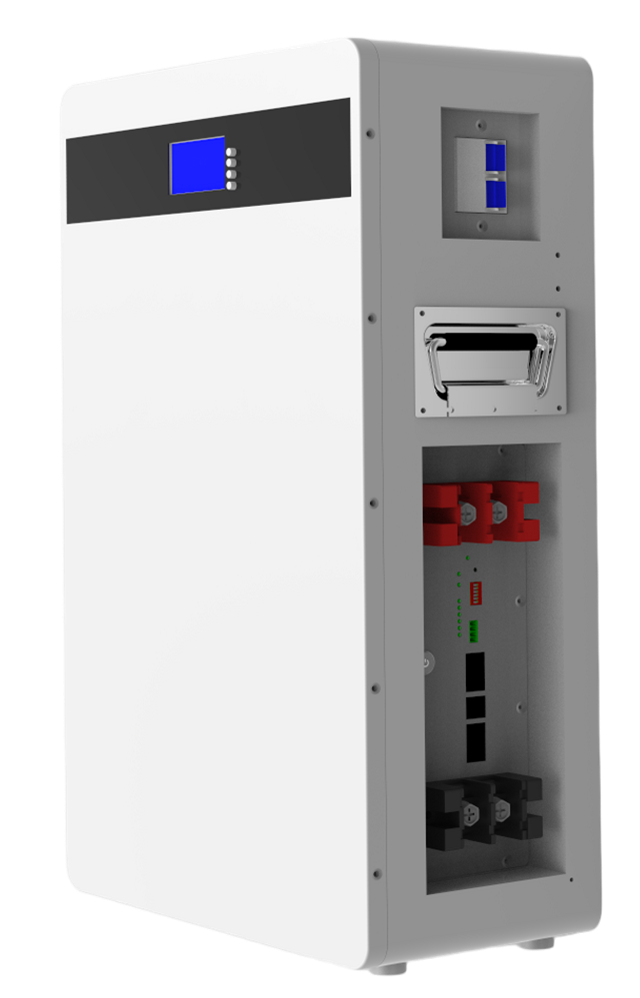

Home Energy Storage System — LW-10K Wall-Mounted LiFePO₄ Battery


Product Overview


The LW-10K is a high-performance wall-mounted lithium iron phosphate (LiFePO₄) battery designed for residential energy storage applications.
With a usable capacity of 10.24 kWh, it provides reliable and efficient power for home solar storage systems, peak shaving, and backup power.
Featuring advanced safety protection, long cycle life, and intelligent communication, the LW-10K delivers clean, stable, and smart energy for modern households.


Technical Specifications

Item Specification
Battery Type LiFePO₄
Rated Voltage & Capacity 51.2 V / 200 Ah
Rated Energy 10.24 kWh
Operating Voltage Range 40 V – 58.4 V
Charging Voltage 58.4 V
Max Continuous Charge/Discharge Current 200 A
Peak Discharge Current 250 A (1 s, configurable)
Cycle Life > 4500 cycles @ 80 % DOD
Communication Interface RS485 / CAN (standard)
Operating Temperature -20 °C ~ +60 °C
Humidity 0 – 95 % (no condensation)
Noise Level < 40 dB (@ 1 m)
Dimensions (W×H×D) 1000 × 800 × 200 mm
Net Weight 88.2 kg
Certifications UN38.3, MSDS, CE
Warranty 5 Years


Key Features

  1. High Safety – Uses LiFePO₄ chemistry with excellent thermal stability, non-explosive and fire-resistant.

  2. Long Service Life – Over 4500 cycles, supporting 10+ years of daily use.

  3. High Power Output – Continuous 200 A discharge and 250 A peak for high-load applications.

  4. Intelligent BMS – Real-time monitoring and full protection (overcharge, over-discharge, over-current, short-circuit, over-temperature).

  5. Flexible Communication – Supports RS485 and CAN for seamless inverter integration.

  6. Modular & Scalable – Easily expandable for higher energy capacity.

  7. Compact Wall-Mount Design – Space-saving, modern appearance, ideal for residential and small commercial use.

  8. Ultra-Quiet Operation – Noise < 40 dB, suitable for indoor installation.

Typical Applications

  • Residential Solar Energy Storage – Store daytime solar power for night-time use, maximizing self-consumption.

  • Backup Power System – Reliable power supply during grid outages.

  • Smart Home Energy Management – Improve energy independence and reliability.

  • Small Commercial or Office Storage – Peak-load shifting and electricity cost reduction.

Our Services

  1. Turn-key Energy Storage Solutions – From system design and component selection to on-site installation and commissioning.

  2. Professional Technical Support – Communication protocol customization, inverter compatibility testing, and remote monitoring setup.

  3. After-Sales Service – 5-year warranty and lifetime technical support.

  4. OEM / ODM Customization – Flexible options for capacity, design, communication interface, and branding.

  5. Fast Delivery & Global Logistics – Standardized products in stock and worldwide shipping available.

The LW-10K wall-mounted LiFePO₄ battery combines safety, durability, high efficiency, and intelligent control to provide a reliable energy storage solution for homes and small businesses.
Whether for solar integration, backup power, or off-grid applications, LW-10K ensures continuous, eco-friendly, and cost-effective energy independence.
